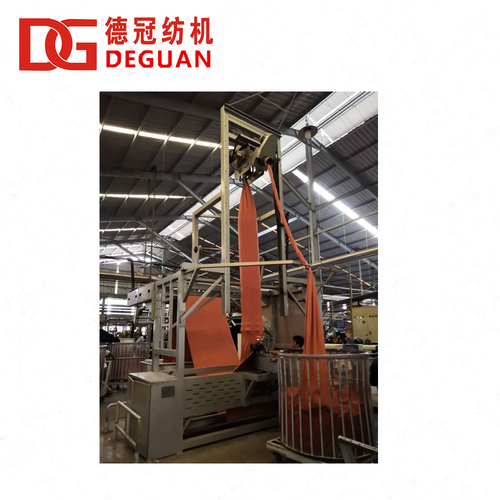

Auto Slitting Machine with Squeezer

Product Details:

Share Your Product:

34000 USD ($)/Set

Get a Price/Quote

Request To Call Back Send Inquiry

Auto Slitting Machine with Squeezer Price And Quantity

Minimum Order Quantity 1 Set
Price Range 34000.00 - 65000.00 USD ($)/Set
Price 34000 USD ($)/Set

Auto Slitting Machine with Squeezer Trade Information

FOB Port Qingdao or Tianjin Port
Supply Ability 50 Set Per Year
Delivery Time 40 Days
Sample Policy Contact us for information regarding our sample policy
Packaging Details FCL
Main Domestic Market All India
Certifications ISO9001,CE,SGS

Product Description

We are occupied in providing a broad array of Auto Slitter in accordance to meet the domestic and global market norms. It is fabricated with a quick and fast coil changing system which can simply thread up without any hassle free conditions. It has inbuilt blade rest feature which can easily make the several adjustments of the fitting force. This slitter helps to minimized the down time and hence improve the productivity in the business. Auto Slitter is ideally used for scanning baseball cards, postcards, printed cards and other collection of cards.

Machine Usage:

This machine is used before stenter and open width compactor. It can slit the tubular fabrics and then squeezing the water, immerse the softer, also it can squeeze water, immerse softner for the open width fabrics.
Rope fabrics infeed directly and be slit,automatic detwister (automatically cenering slitting line device is optional), this machine enhance the manufacturing efficient, omit the flow process. So can save time and labour, shorten the production cycle.

Driven pattern	inverter gear reducer motor drive
Fabrics speed	0~80m/min(inverter control and adjustable)
Infeed and exit pattern	tubular infeed and open width exit
Voltage	380V/220V
Machine power	small padder before slitting machine 1.5Kw(optional) slitter 10.75Kw padder 8.6 Kw
Tubular fabrics maximum width	1200 mm
Dimension	slitter 3400mm 4000mm 6800 mm padder 1200mmX3650mm 2200mm small padder 2400mm 800mm 2000mm
Machine weight	about 12.8T

Machine structure:

Turn table: Pull the fabrics trolley to the turn table, after fix it, the turn table will detwister automatically.

Small padder(optional): The wet fabrics will be squeezed by the small padder,which can remove some water from the fabrics,which makes easier to slit,then the fabrics enter to the detwist device

Detwister device: Rope type fabrics enter the detwister,there is sensor on the detwister, which can sense the twist and send signal to orer the detwister head and turn table to rotary and detwist, then fabrics will enter the slitting umbrella under the draw of the active motor.

Slitting umbrella: It is made of stainless steel, diameter can be adjustable, there is synchronous breadth adjust device in the back. It is the same width with umbrella frame. When working, rotary the umbrella frame to center the slitting line(customer can order automatic slitting centering device)

Slitting blade: Diameter 200 mm; rotary speed 2800rpm; when the three phase motor drive, it will start to slit the fabrics.

Stretcher: After slit, the active roller will bring the fabrics to spreading frame, the stainless steel tube is made to triangle shape and will open the fabrics, it is flexible, can be adjusted. Then fabrics enter the padder through the infra-red centering device.

Slat pattern infra-red centering device: Fabrics after slit go through double spreading shafts of the infra-red centering device to expand, then will be corrected by centering shaft, at last enter Padder.

Though adjust the air cylinder, the different pressure will be press on the squeezing roller, then the extra liquid will be press out from the fabrics. The center of the squeezing roller is steel structure, outside covers USA special glue. Surface is high profile, the contact surface of the doule squeezing roller will have a parallel to the squeezing seam under 80KN pressure. There is liquor detention on the fabrics.

Plaiting exit: Fabrics after squeezing liquid will exit with plaiting, it is drivin by active roller, driven by three phase motor.

Electrical control

The electrical control adopts relay-contactor pattern, main driven speed is controlled by inverter.
Electrical components, inverter is Delta brand, low voltage appliance is shneider of France.
