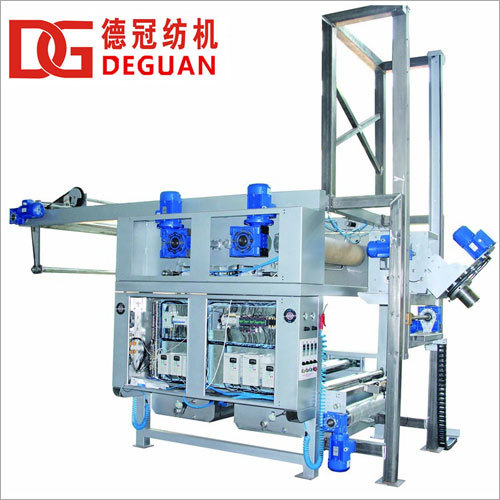

Balloon Padder with Detwister and Squeezer for Open Fabric

Model

DGRZ1400

Name

Balloon Padding Machine

Function

Stainless Balloon Padding Machine is used for impregnating softening liquid to wet process of double dip the tubular fabric, then padding the residual liqiud. it can replace the traditional process of centrifugal machine and wet expander. It is high efficient and easy to operate. Tubular Balloon Padder is really a 3in1 powerful machine.

Suitable Fabric

Wet tubular knitted Fabric

OEM

Available

Year of Manufacture

2019

Technical Data

Working Width

1400mm

Working Speed

3-45m/min

Installed Power

11.45kw

Dimension

7700mm x 2750mm x 4000mm (L*W*H)

Weight

Approx. 5.8T

Compressed Air

0.35-0.6MPa

Color

Blue/Customized

Name of Parts

Description

Turning Table

Turning table is driven by motor, it can turn clockwise or anticlockwise according to untwisting requirement.

Detwister (Optional)

Detwister will auto detwist the roped fabric and infeed smoothly

Ring Guider

Fabrics guide rings position (fabrics working breadth) is adjusted through lead screw, lead screw is driven by motor

Trough

Make it by 316L stainless steel,anti-corrosion from the chemical liquid

Auto Blower

After detwisting,the blower will inject air into fabric,it will be favor to utmost impregnate the chemical agent on fabric

Squeezer

Squeezer consists of 2 sets rubber roller and 2 sets Pneumatics cylinder.
Stainless with double tip

The pressure of the squeezing roller is adjusted by two sets reduce valve.

The water squeezing device and softener expression device are driven by one motor separately

Two motors are controlled by inverter.

Tension Regulator

Set with a regulation-resistance to adjust tension between squeezing roller and delivery device.

Energy Consumption

Item

Consumption

Driving System

11.45KW

Steam

50-100kg/h
