Drying Machine for Tubular and Open Width Fabric

52500.00 - 89500.00 USD ($)

Get a Price/Quote

Request To Call Back Send Inquiry

Drying Machine for Tubular and Open Width Fabric Price And Quantity

FOB Port Qingdao Port
Payment Terms Letter of Credit (L/C) Telegraphic Transfer (T/T) Western Union
Delivery Time 45 Days
Main Export Market(s) Western Europe Eastern Europe Middle East Central America Africa South America Asia North America
Certifications ISO,CE

Introduction

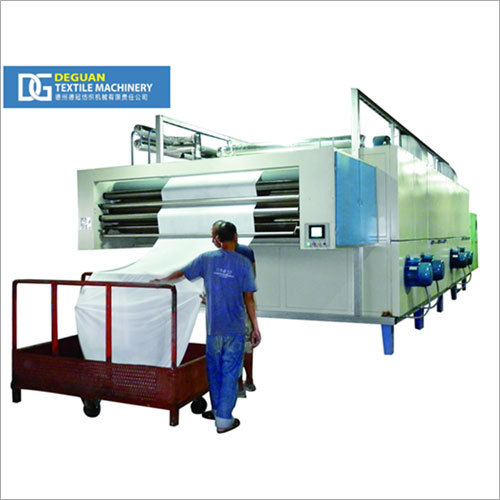

The relax dryer machine is used for tubular and open-width fabric with heating cylinder by three-layer belt. Because each layer could be run under different speed, the fabric could be kept in loosen status without any tension during the drying process.
We provide corresponding machine according to different types of fabric to meet your requirements totally.
Based on the different fabric width and production requirement, we could supply different models with different chambers as following: DGHG-2000mm/2400mm/2800mm/3200mm/3600 mm, with 2-8chambers.

Based on the different heat sources, we could supply the following models with 3 heating sources:

Our machines are equipped with conveyor belt made of ptfe material, it could bear high temperature and not
pollute the fabric with non-staining.

Basic Info & Technical Data

Model	DGHG2600
Name	Relax Dryer Machine
Application	Drying the fabric, eliminating exceeding water and achieving the natural moisture content of the fabric
Suitable Fabric	Knitted and Woven Fabric
Layout	Reference Above Layout
Max. Working Width	2600mm
Machine Speed	0~30m/min
Motor	11kw 2motors/chamber, China famous brand or Siemens(optional)
Chamber Nos	2 Sets
Power Supply	380V·3P·50HZ (standard) /220V ·3P ·60HZ(optional)
Weight of Machine	13T
Working Type	Three-layer net belt cycling
Net Belt Type	Glass fiber with PTFE coated
Driving Type for net belt	PLC+Inverter control
Heat-setting Type	Oil
Max Drying Temperature	140~160ºC
Temp. control type	Automatically regulate two chambers temperature as one section
Length of Chamber	2.1M
Thickness of Insulation Board	105mm
Machine Dimension	8300x4500x3450mm (LxWxH)
Comments:	Key components and parts apply Schneider/Honeywell/Siemens/Bealz/ etc brand products..

Advantage:

We possess the upgrade and design ability with our professional technical team, your customized design could be changed into drawing.
With advanced technology and best quality, we make sure that you can get satisfied products based on our pleasant cooperation.

* Video of Sample Machine could be offered according to your request.
