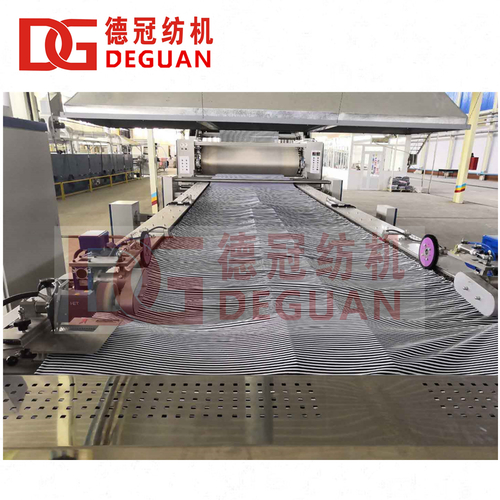

Electricity Heat Source Open Width Compacting Machine

118000 USD ($)

Get a Price/Quote

Request To Call Back Send Inquiry

Electricity Heat Source Open Width Compacting Machine Price And Quantity

FOB Port Qingdao Port
Payment Terms Letter of Credit (L/C) Telegraphic Transfer (T/T)
Supply Ability 50 Set Per Year
Delivery Time 40 Days
Main Export Market(s) Western Europe North America Eastern Europe Central America Africa Middle East South America Asia

Introduction

The Open Width Compactor machine is 3in1 advance textile finishing machinery, specially appllied for open width cotton fabric pre-shrinking process. At the beginning of overfeed, the cotton fiber will be processed by steaming to increase the humidity and plasticity. Then the fabric will be widened and pre-shrinked in order to reduce shrinkage and get a good soft feature.
Some fabric could be used directly after drying machine processing, and you can get a stable size,qualified shrinkage and soft effect. If the fabric couldn't reach the standard,you can repeat the processing step and obtain satisfactory result.
Based on different fabric width, we can provide different working width machine, the most popular models are DGLS-2200mm/2400mm(standard)/2600 mm.

Our Open Width Compactor machine is mainly used for cotton and other natural fibers

***The machine can NOT be used for synthetic fabrics.

Model	DGLS2400
Name	Open Width Compactor
Application	Textile-finishing(shrinkage rate: about 3%)
Suitable Fabric	Open width knitted fabric, cotton and mixed fabrics(cotton>50%) *The machine can not be used for synthetic fabrics.
Layout	Reference Above Layout
Max. Working Width	2400mm
Machine Speed	3~35m/min
Chamber Nos	0~4Sets
Power Supply	380V·3P·50HZ
Weight of Machine	25T
Tentering Working Type	Horizontal Circulating Chain(Stainless Steel Pin Plate &Holder, Pitch:60mm)
Compacting Type	Felt Belt + Hot Cylinder, Felt Belt Thickness:20-21mm
Driving Type for net belt	PLC+Inverter control
Heat Source Type	Steam
Max Drying Temperature	140ºC
Temp. control type	Automatically each chamber
Length of Chamber	3000mm
Thickness of Insulation Board	150mm
Machine Dimension	L=24540mm W=4500mm H=3000mm
Selvage Trimming/Gumming/ Cutting Device	Chinese Brand

Advantage:

We possess the upgrade and design ability with our professional technical team, your customized design could be changed into drawing.
With advanced technology and best quality, we make sure that you can get satisfied products based on our pleasant cooperation.
