Textile Dryer Machine

Product Details:

Type Automatic
Fabric width 3000 Millimeter (mm)
Voltage 220V/380V Volt (v)
Dimension (L*W*H) 8300x4500x3450 Millimeter (mm)
Speed 0-30 m/m
Fabric Type Open Fabric and Tubular Fabric
Share Your Product:

50000 USD ($)/Set

Get a Price/Quote

Request To Call Back Send Inquiry

Textile Dryer Machine Price And Quantity

Price 50000 USD ($)/Set
Price Range 50000.00 - 85000.00 USD ($)/Set
Minimum Order Quantity 1 Set

Textile Dryer Machine Product Specifications

Type Automatic
Fabric width 3000 Millimeter (mm)
Voltage 220V/380V Volt (v)
Dimension (L*W*H) 8300x4500x3450 Millimeter (mm)
Speed 0-30 m/m
Fabric Type Open Fabric and Tubular Fabric

Textile Dryer Machine Trade Information

FOB Port Tianjin Port
Payment Terms Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union
Supply Ability 50 Set Per Year
Delivery Time 45 Days
Sample Policy Contact us for information regarding our sample policy
Packaging Details Standard Package
Main Domestic Market All India
Certifications ISO9001,CE,SGS

Product Description

Textile Dryer Machine is well known for its space consuming and high perform an cenature. It is available in both the ways electrical as well as gas heating both. Mainly suitable for drying water proof colors, ink solvent treatment etc. It is used in textile industries to dry the fabrics instantly. Textile Dryer Machine can be easily heated with the help of a gas burner. This unit is specially inserted with blowing fan, exhausting fan, ductile motor system and high cutting speed machine. Introduction

The relax dryer machine is used for tubular and open-width fabric with heating cylinder by three-layer belt. Because each layer could be run under different speed, the fabric could be kept in loosen status without any tension during the drying process.
We provide corresponding machine according to different types of fabric to meet your requirements totally.
Based on the different fabric width and production requirement, we could supply different models with different chambers as following: DGHG-2000mm/2400mm/2800mm/3200mm/3600 mm, with 2-8chambers.

Based on the different heat sources, we could supply the following models with 3 heating sources:

Steam
Thermal Oil
Natural Gas

Our machines are equipped with conveyor belt made of ptfe material, it could bear high temperature and not pollute the fabric with non-staining.

Basic Info & Technical Data

Model	DGHG2600
Name	Relax Dryer Machine
Application	Drying the fabric, eliminating exceeding water and achieving the natural moisture content of the fabric
Suitable Fabric	Knitted and Woven Fabric
Layout	Reference Above Layout
Max. Working Width	2600mm
Machine Speed	0~30m/min
Motor	11kw 2motors/chamber, China famous brand or Siemens(optional)
Chamber Nos	2 Sets
Power Supply	380V·3P·50HZ (standard) /220V·3P·60HZ(optional)
Weight of Machine	13T
Working Type	Three-layer net belt cycling
Net Belt Type	Glass fiber with PTFE coated
Driving Type for net belt	PLC+Inverter control
Heat-setting Type	Oil
Max Drying Temperature	140~160ºC
Temp. control type	Automatically regulate two chambers temperature as one section
Length of Chamber	2.1M
Thickness of Insulation Board	105mm
Machine Dimension	8300 x 4500 x 3450mm (LxWxH)
Comments:	Key components and parts apply Schneider/Honeywell/Siemens/Bealz/ etc brand products..

Advantage:

We possess the upgrade and design ability with our professional technical team, your customized design could be changed into drawing.
With advanced technology and best quality, we make sure that you can get satisfied products based on our pleasant cooperation.

* Video of Sample Machine could be offered according to your request.

Other Products in 'Textile Machine' category

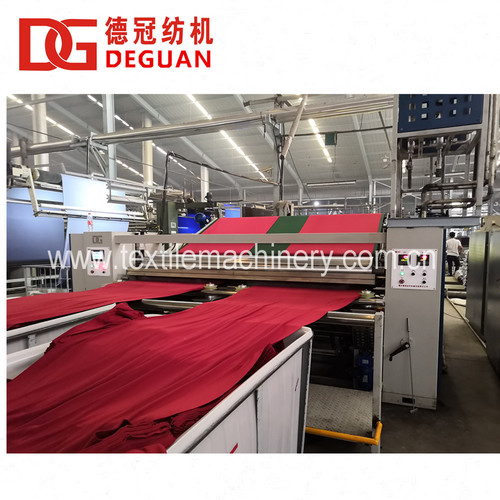

Tubular Calendering machine is used for tubular fabric, increase smoothy feel and brightness Price : 60000 USD ($)/Set Minimum Order Quantity : 1 Fabric Type : tubular Speed : 15 m/m Voltage : 380 Volt (v) Manufacturing Year : 2020 Years Fabric width : 1400 Millimeter (mm) Type : DGZG2600
