Send InquiryOpen Width Compactor Machine
Product Details:
- Dimension (L*W*H) 24540* 4500*3000 Millimeter (mm)
- Manufacturing Year New Months
- Speed 3~35 m/m
- Type Automatic
- Voltage 220V/380V Volt (v)
- Fabric width 2800 Millimeter (mm)
- Weight 25000 Kilograms (kg)
Open Width Compactor Machine Price And Quantity
- 1 Set
- 115000 USD ($)/Set
Open Width Compactor Machine Product Specifications
- 25000 Kilograms (kg)
- 2800 Millimeter (mm)
- 3~35 m/m
- 220V/380V Volt (v)
- Automatic
- New Months
- 24540* 4500*3000 Millimeter (mm)
Open Width Compactor Machine Trade Information
- Tianjin Port
- Letter of Credit (L/C) Letter of Credit at Sight (Sight L/C) Telegraphic Transfer (T/T) Western Union
- 50 Set Per Year
- 45 Days
- Contact us for information regarding our sample policy
- Standard Package
- All India
- ISO9001,CE,SGS
Product Description

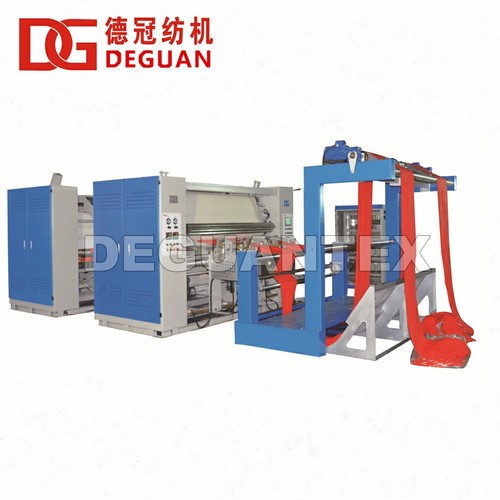

Our firm has attained a reliable position in rendering an extensive range of Open Width Compactor Machine. It is basically useful for compacting the open fabric from tabular form of application. This machine is considered to achieve the accurate dimensional stability and open the knitted fabrics in an effective manner. It ensures quality approved fabric material with less shrinking nature. Open Width Compactor Machine can be procured in various capacities, widths, volumes and technical specifications to fulfill the high demands of our users and plasticity. Then the fabric will be widened and pre-shrinked in order to reduce shrinkage and get a good soft feature.Some fabric could be used directly after drying machine processing, and you can get a stable size,qualified shrinkage and soft effect. If the fabric couldn't reach the standard,you can repeat the processing step and obtain satisfactory result.Based on different fabric width, we can provide the following machine models:DGLS-2200mm/2400mm (standard)/2600 mm Based on different heat sources, our machine adopt 3 heat methods: Steam, Electricity, Conduct Oil.Our Open Width Compactor machine is mainly used for cotton and other natural fibers The machine can NOT be used for synthetic fabrics.
| Model | DGLS2400 |
| Name | Open Width Compactor |
| Application | Textile-finishing(shrinkage rate: about 3%) |
| Suitable Fabric | Open width knitted fabric, cotton and mixed fabrics(cotton>50%) |
| *The machine can not be used for synthetic fabrics. | |
| Layout | Reference Above Layout |
| Max. Working Width | 2400mm |
| Machine Speed | 3~35m/min |
| Chamber Nos | 3 Sets |
| Power Supply | 380V3P50HZ |
| Weight of Machine | 25T |
| Tentering Working Type | Horizontal Circulating Chain(Stainless Steel Pin Plate &Holder, Pitch:60mm) |
| Compacting Type | Felt Belt+ Hot Cylinder, Felt Belt Thickness:20-21mm |
| Driving Type for net belt | PLC+Inverter control |
| Heat Source Type | Steam |
| Max Drying Temperature | 140ºC |
| Temp. control type | Automatically each chamber |
| Length of Chamber | 3000mm |
| Thickness of Insulation Board | 150mm |
| Machine Dimension | L=24540mm W=4500mm H=3000mm |
| Selvage Trimming/Gumming/ Cutting Device | Chinese Brand |
Advantage:
We possess the upgrade and design ability with our professional technical team, your customized design could be changed into drawing.With advanced technology and best quality, we make sure that you can get satisfied products based on our pleasant cooperation.
