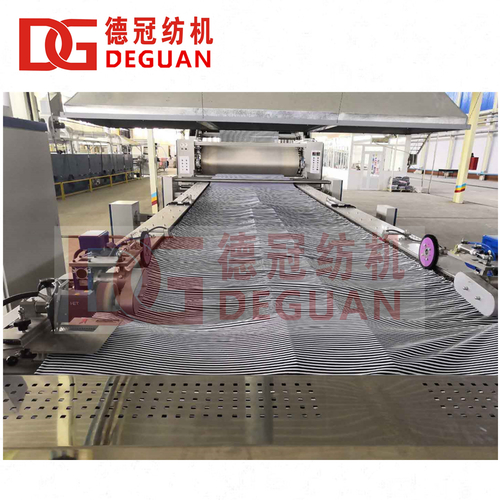

Send InquiryTubular Fabric Compacting Machine
Product Details:
- Weight 45500 Kilograms (kg)
- Fabric Type Tubular Knitted Fabric
- Dimension (L*W*H) 6500*2740*2250 Millimeter (mm)
- Voltage 220V/380V Volt (v)
- Fabric width 1500 Millimeter (mm)
- Speed 5-30 m/m
Tubular Fabric Compacting Machine Price And Quantity
- 1 Set
- 45500 USD ($)/Set
- 45000.00 - 60000.00 USD ($)/Set
Tubular Fabric Compacting Machine Product Specifications
- 45500 Kilograms (kg)
- 1500 Millimeter (mm)
- 5-30 m/m
- Tubular Knitted Fabric
- 6500*2740*2250 Millimeter (mm)
- 220V/380V Volt (v)
Tubular Fabric Compacting Machine Trade Information
- Letter of Credit (L/C), Telegraphic Transfer (T/T)
- 50 Set Per Year
- 35 Days
- Contact us for information regarding our sample policy
- Standard Package
- ISO9001,CE,SGS
Product Description
We are instrumentalin bringing a wide assortment of T Tubular Compact Machine indifferent specification and modifications to our clients. It is ideally used to control shrinking and dimensional stabilizing of the particular fabric. This machine is made with a fine grade of steel material which derives maximum working life. T Tubular Compact Machine is designed in a magnetic device which ensures flawless opening of the fabric material. Therefore, provided machine aids to increase the smoothness and can be easily fixed any fabric area.
This machine is used for preshrinking and ironed tubular fabric, and equipped with magnetic separating shuttle, hydraulic lifting platform, 20mm carpet.The temperature of machine could reach 180°C. But Steams temperature is 140°C.Our machine blanket is 20mm thickness, containing material, which could resist high temperature and not pollute the fabric.*The width of fabric: 1450 mm Max.*Standard diameter of Cylinder is 450mm.
Basic Info & Technical Data
| Model | DGYS450S |
| Name | Tubular Compactor |
| Application | Textile-finishing (shrinkage ratio: 2-5%) |
| Suitable Fabric | Tubular knitted Fabric Pure cotton, wool, blended fabric (cotton content >65%) |
| Main Matching Fabric | Tubular fabric of above 65% cotton content |
| Heat source | Oil |
| Pre-shrinking type | 20mm compacting |
| Supporting Plate type | Magnetic separated shuttle |
| Fabric Out feed type | Auto Precision Folding machine |
| Max working width of supporting plate | Double Pass: 550mm x 2 |
| Max working width of felt | 1500mm |
| Working speed | 5-30m/min |
| Cylinder temperature& drive control | Up & down separately control |
| Max temperature of drum | Electricity, Thermal Oil 190 |
| Breadth Adjustment type | Manual and Electro motion |
| Capacity of machine | 15Kw |
| Standard machine power supply | 220V/3P/60HZ or 380V/3P/50HZ |
| Control power supply | 220V/24V |
| Compressed air | 0.35-0.6MPa |
| Dimension | L*W*H=6500mm*2740mm*2250mm |
| Total weight | 4.55T |
